P6SMB TVS 600W

Introduction

Transient Voltage Suppression (TVS) diode is an electronic component used to protect sensitive electronics from voltage spikes induced on connected wires

General specifications

  • Working Peak Reverse Voltage VRWM_5.0V ~ 440V
  • Max. Reverse Leakage IR@ VRWM_5uA ~ 800uA
  • Max. Clamping Voltage Vc@Ipp_9.6V ~ 713V
  • Max. Reverse Surge Current Ipp_0.8A ~ 62.5A

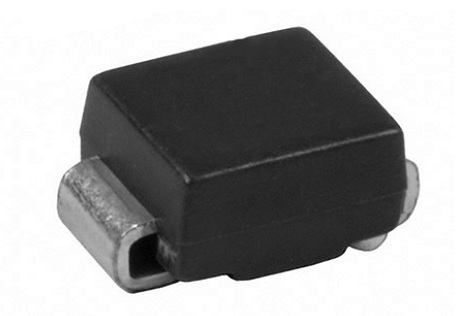

  • Package_DO-214AA(SMB)

Part numbering system

Example

P6SMB5.0CA
①~⑤⑥~⑧⑨~⑩

①~⑤

CodeTVS
P6SMB600W

⑥~⑧

CodeWork Vdtage
5.05.0V

⑨~⑩

CodeDirectional
Auni
CABi

Download

Name PDF
TVS 600W P6SMB series P6SMB_20150210.pdf
